ISO 100KG/H High Speed Centrifugal Spray Dryer Milk Powder Use
Product Details:
| Place of Origin: | China |
| Certification: | SGS, CE, ISO |
| Model Number: | LPG-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD10990-59000/unit |
| Packaging Details: | shipping container |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000unit per year |
|
Detail Information |
|||
| Name: | Spray Dryer Milk Powder | Material: | SUS 304, SUS316L |
|---|---|---|---|
| Nozzle: | Centrifugal Atomizer/nozzle | Evaporation Capacity: | 100KG/HOUR |
| Heating Source: | Electricity/ Steam Or Natural Gas | Packing: | 20GP Container |
| Temperature: | 160-250 | Capacity: | 50kg Per Hour |
| Highlight: | 100KG/H Centrifugal Spray Dryer,ISO Centrifugal Spray Dryer |
||
Product Description

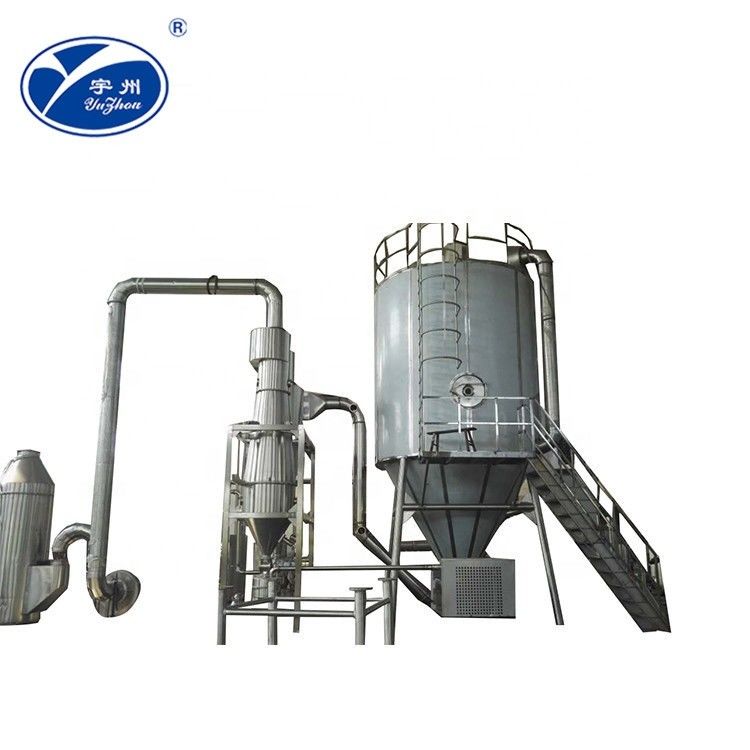

Milk Powder High Speed Centrifugal Spray Dryer Food Grade Stainless Steel
Milk powder Spray dryer Description
LPG high-speed centrifugal Spray Dryer is applicable for the emulsion, suspension, paste and liquid solution. In polymers and resins, fuels, paints, ceramics, glass type, descaling agent, insecticide, carbohydrates, dairy products, detergents and surfactants, fertilizer, organic compounds and inorganic compounds of dry material, the performance is particularly remarkable. This drier can be widely used into pharmaceutical, chemical, foodstuff and so on industries/field
Features and application ■ The drying speed is fast, the liquid is sprayed by centrifugal spray, and the surface area is greatly increased. In the high-temperature airflow, 95%-98% of water can be evaporated in an instant, and the drying time is only a few seconds.
■ Suitable for heat sensitive materials. Because the droplets flow in the direction of cocurrent flow, although the temperature of the hot air is higher, the material will not overheat when the water evaporates. The temperature distribution in the drying tower is shown in the lower left figure.
■ A wide range of materials are used, and a large number of materials with large differences in physical properties are used for this production. Such as polymers and resins; dyes, pigments; ceramics, glass; rust removers, insecticides; carbohydrates; dairy products; blood and fish products; fertilizers; organic, organic compounds, etc. .
■ The product has good dispersibility, fluidity and solubility. This is due to the fact that the drying is completed in an instant, and the product can maintain a uniform fine particle shape.
■ The production process is simplified and the operation control is convenient. For the wet content of 40-60% (special material up to 90%), the solution can be dried into a powdery product at one time. After drying, it is no longer necessary to pulverize and screen, which reduces the production process and improves the purity of the product. For the product particle size, bulk density, moisture, within a certain range, the operating conditions can be changed to adjust, control and management are very convenient.
FAQ
This hish speed centrifugal spray dryer is widely used in chemical industry, pharmaceutical industry, foodstuff industry and so on.
1. Material name
2. Content of solid; Content of moisture(%)
3. Processing capacity; Evaporation capacity? (kgs/hour; Litre/ hour)
4. Max. Temperature the material can bear
5. Heating source. Do you need Electric heating compensation to improve heating temperature?
Trial/ Doing Experiment
Spray dryer TECHNICAL PARAMETERS spray dryer
| Spray dryer Parameter |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
| Inlet temperature(°C) | 140-350automaticallycontrolled | |||||||||||||||
| Outlet temperature(°C) | 80-90 | |||||||||||||||
| Water evaporation capacity(kg/h) | 5 | 10 | 15 | 20 | 25 | 50 | 100 | 150 | 200 | 500 | 800 | 1000 | 200 | 3000 | 4500 | 6500 |
| Diameter of atomizing tray (rpm) | 50 | 80 | 80 | 120 | 150 | 180-210 | Decidedin accordance witn the requirementsof processs | |||||||||
| Max Electric heating power(kw) | 12 | 24 | 36 | 45 | 46 | 63 | 81 | 99 | ||||||||
| Dried powder restoring rate(%) | ≥95 | |||||||||||||||
| Length of convered area (m) | 1.6 | 2.7 | 3 | 3.5 | 4 | 4.5 | 5.2 | 7 | 7.5 | 12.5 | 13.5 | 14.5 | Decided in accordance the flow chart, | |||
| Width of convered area (m) | 1.1 | 1.5 | 1.8 | 2 | 2.7 | 2.8 | 3.5 | 5.5 | 6 | 8 | 12 | 14 |
Condition of filed and requirements |
|||
