Agar 10KG/H High Speed Centrifugal Spray Dryer GMP Standard
Product Details:
| Place of Origin: | China |
| Certification: | SGS, CE, ISO |
| Model Number: | LPG-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD10990-59000/unit |
| Packaging Details: | shipping container |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000unit per year |
|
Detail Information |
|||
| Name: | Spray Dryer | Material: | SUS 304, SUS316L |
|---|---|---|---|
| Nozzle: | Centrifugal Atomizer | Evaporation Capacity: | 10KG/HOUR |
| Heating Source: | Electricity | Packing: | 20GP Container |
| Drying Temperature: | 120-300 | Standard: | GMP |
| Highlight: | 10KG/H Centrifugal Spray Dryer,Agar Centrifugal Spray Dryer |
||
Product Description

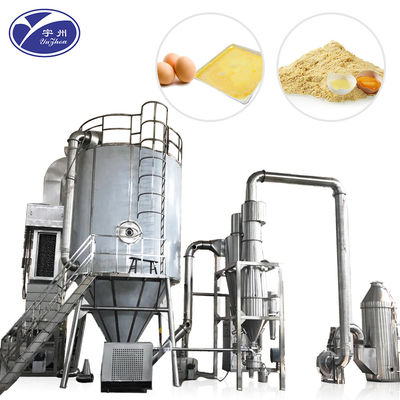

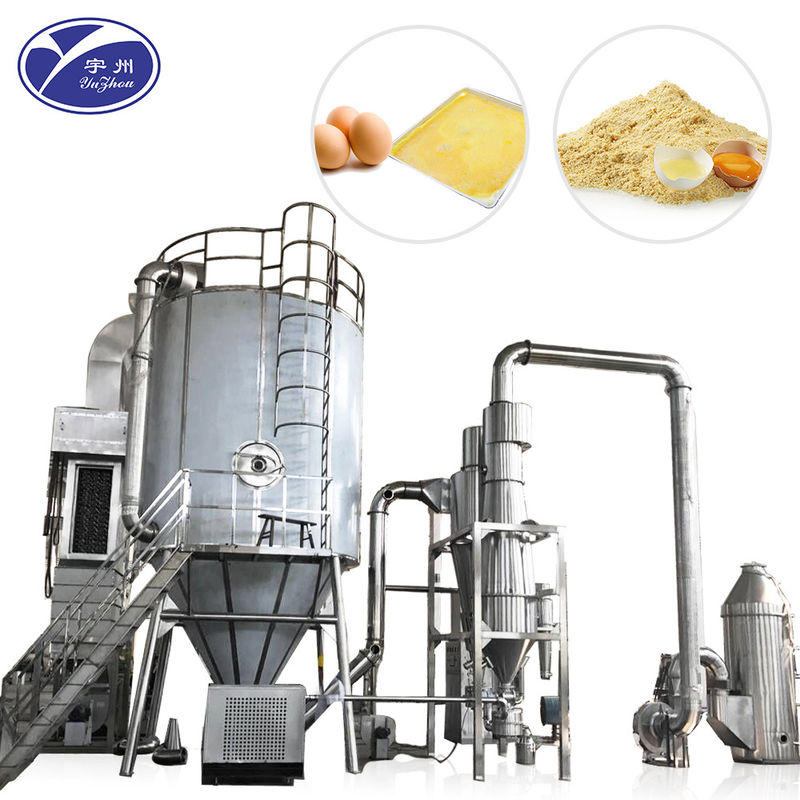

Stainless Steel High Speed Centrifugal Spray Dryer For Agar Agar 10KG / HOUR Capacity
Spray dryer Description
LPG high-speed centrifugal Spray Dryer is applicable for the emulsion, suspension, paste and liquid solution. In polymers and resins, fuels, paints, ceramics, glass type, descaling agent, insecticide, carbohydrates, dairy products, detergents and surfactants, fertilizer, organic compounds and inorganic compounds of dry material, the performance is particularly remarkable. This drier can be widely used into pharmaceutical, chemical, foodstuff and so on industries/field
Principle spray dryer
Air flow through the filter, heater and dryer into the top of the divider, a spiral-shaped hot air into the dryer uniform. Yecao feed from the filter is expected to pump at the top of the dryer centrifugal atomizer to spray liquid into very small droplets of mist, feed and hot air flow and contacts, the rapid evaporation of water, in a very A short period of time dry-finished and finished products from drying tower at the bottom and from the cyclone, exhaust emission from the fan
Features spray dryer
Dry faster, the general time is only 5-15 seconds, with instantaneous drying characteristics.
Materials take a very short period of time to complete the drying process, adapted to the dry thermosensitive materials, materials to maintain color, smell and taste.
The drying speed is fast, the surface area of the liquid is greatly increased after atomization, and in the hot air flow, 95%-98% of the water can be evaporated instantaneously, and the drying time is only a few seconds, which is especially suitable for drying the heat sensitive material. The product has good uniformity, fluidity and solubility, and the product has high purity and good quality. The production process is simplified and the operation control is convenient. For liquids with a moisture content of 40-60% (up to 90% of special materials), it can be dried into a powder product at one time. After drying, no pulverization and screening are required, which reduces the production process and improves the purity of the product. The particle size, bulk density and moisture of the product can be adjusted within a certain range by changing the operating conditions, and the control and management are very convenient
FAQ
This spray drier is widely used in chemical industry, pharmaceutical industry, foodstuff industry and so on.
1. Material name
2. Content of solid; Content of moisture(%)
3. Processing capacity; Evaporation capacity? (kgs/hour; Litre/ hour)
4. Max. Temperature the material can bear
5. Heating source. Do you need Electric heating compensation to improve heating temperature?
Welcome client come and make Trial/ Doing Experiment (WhatsApp 008618262545965)
Spray dryer TECHNICAL PARAMETERS spray dryer
| Spray dryer Parameter |
LPG -5 |
LPG -10 |
LPG -15 |
LPG -20 |
LPG -25 |
LPG -50 |
LPG -100 |
LPG -150 |
LPG -200 |
LPG -500 |
LPG -800 |
LPG -1000 |
LPG -2000 |
LPG -3000 |
LPG -4500 |
LPG -6500 |
| Inlet temperature(°C) | 140-350automaticallycontrolled | |||||||||||||||
| Outlet temperature(°C) | 80-90 | |||||||||||||||
| Water evaporation capacity(kg/h) | 5 | 10 | 15 | 20 | 25 | 50 | 100 | 150 | 200 | 500 | 800 | 1000 | 200 | 3000 | 4500 | 6500 |
| Diameter of atomizing tray (rpm) | 50 | 80 | 80 | 120 | 150 | 180-210 | Decidedin accordance witn the requirementsof processs | |||||||||
| Max Electric heating power(kw) | 12 | 24 | 36 | 45 | 46 | 63 | 81 | 99 | ||||||||
| Dried powder restoring rate(%) | ≥95 | |||||||||||||||
| Length of convered area (m) | 1.6 | 2.7 | 3 | 3.5 | 4 | 4.5 | 5.2 | 7 | 7.5 | 12.5 | 13.5 | 14.5 | Decided in accordance the flow chart, | |||
| Width of convered area (m) | 1.1 | 1.5 | 1.8 | 2 | 2.7 | 2.8 | 3.5 | 5.5 | 6 | 8 | 12 | 14 |
Condition of filed and requirements
|
|||
