VFBD Fluidized Bed Equipment , SS316L 2.7m2 Salt Drying Machine
Product Details:
| Place of Origin: | China |
| Certification: | CE,ISO,SGS |
| Model Number: | ZLG1.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD28988-89689 per set |
| Packaging Details: | shipping container 40HQ |
| Delivery Time: | 30-50 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100sets/year |
|
Detail Information |
|||
| Application: | Drying Salt | Material: | SS316L Stainless Steel |
|---|---|---|---|
| Power: | 3phase 220-440V | Heating Source: | Natural Gas/steam/oil/electricity |
| Principle: | Vibration And Dry | Packing: | Nude |
| Loading Port: | Shanghai | Warranty: | One Year |
| HS: | 8419399090 | Installation Guide: | 95USD Per Day |
| Highlight: | SS316L salt drying machine,VFBD fluidized bed equipment,2.7m2 fluidized bed equipment |
||
Product Description

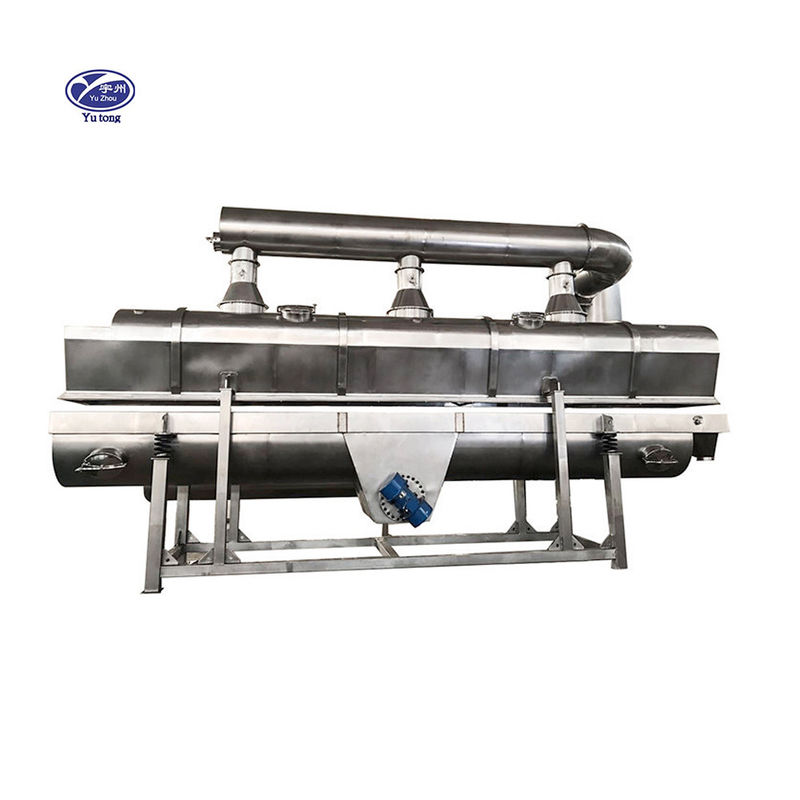

SS316L stainless steel VFBD vibration fluid bed dryer for salt dehydration
VFBD Fluid bed dryer Features
The vibration is created by motorl is stable in operation and convenient in maintenance, low noise and long life.
High effection,raw material is heates evenly and heatedevenly and heat exdhange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
It is good in regulation and wide in suitablity. Tje thickness of raw material layer and movable speed inside the maching and the amolitude can be adjusted through continous variable speed.
It is small for danaging the are surface of raw material. Theequipment can be used for drying raw materials that are easy broken. The drying effect can not affected even if raw materials have anomaly shape.
A fully enclosed structure, effectively prevent the material and the air space between the cross infection of the working environment clean.
You can string multi-srt to raseed capacity of raw materials, such as polyacrylamide.
Model |
Fluidized bed area m2 | Temperature of air in °C | Temperature of air out °C | Capacity of vaporize moisture Kg/h | Vibration motor | |
| Model | Power(Kw) | |||||
| ZLG3×0.30 | 0.9 | 70~140 | 40~70 | 20~35 | YZS8-6 | 0.75×2 |
| ZLG4.5×0.30 | 1.35 | 35~50 | YZS10-6 | 0.75×2 | ||
| ZLG4.5×0.45 | 2.025 | 50~70 | YZS15-6 | 1.1×2 | ||
| ZLG4.5×0.60 | 2.7 | 70~90 | YZS15-6 | 1.1×2 | ||
| ZLG6×0.45 | 2.7 | 80~100 | YZS15-6 | 1.1×2 | ||
| ZLG6×0.60 | 3.6 | 100~130 | YZS20-6 | 1.5×2 | ||
| ZLG6×0.75 | 4.5 | 120~170 | YZS20-6 | 2.5×2 | ||
| ZLG6×0.9 | 5.4 | 140~170 | YZS30-6 | 2.2×2 | ||
| ZLG7.5×6.0 | 4.5 | 130~150 | YZS30-6 | 2.2×2 | ||
| ZLG7.5×0.75 | 5.625 | 150~180 | YZS40-6 | 3.0×2 | ||
| ZLG7.5×0.9 | 6.75 | 160~210 | YZS40-6 | 3.0×2 | ||
| ZLG7.5×1.2 | 9 | 200~280 | YZS50-6 | 3.7×2 | ||
| ZLG7.5×1.5 | 11.25 | 230~330 | YZS50-6 | 3.7×2 | ||
| ZLG8×1.8 | 14.4 | 290~420 | YZS75-6 | 5.5×2 | ||
